SG(ZB)10 Series Of Coating Coil Dry Type Transformer
Product standards
GB/T10228-2015 GB1094.11-2007
High pressure rating: 10 (10.5, 11, 6, 6.3, 6.6) kV
Low pressure rating: 0.4 kV
Tapping range: non-field excitation changer
(5% plus or minus 5%, plus or minus 2 x2.)
On-load voltage regulation: (plus or minus 4 x2. 5%)
Link category: Dyn11 or Yyn0
Insulation level: LI75AC35 / AC5
Note: when the maximum ambient temperature is >40℃ and the ASL is >1000m, it shall be amended according to relevant regulations in national standards. The user shall propose when ordering.
|
Rated capacity(kVA) |
Voltage Combinationand Tap range |
Vector Group Symbol |
No-load loss (W) |
Load loss |
No-load current (%) |
Short circuit impedance (%) |
||
|
High pressure |
High pressure tap range (%) |
Low ressure (kV) |
||||||
|
100 |
6 6.3 6.6 10 10.5 11 |
±2×2.5 ±5 |
0.4 |
Dyn11 |
400 |
1370 |
1.5 |
4 |
|
125 |
Yyn0 |
470 |
1620 |
1.3 |
||||
|
160 |
540 |
1870 |
1.3 |
|||||
|
200 |
620 |
2220 |
1.1 |
|||||
|
250 |
720 |
2420 |
1.1 |
|||||
|
315 |
880 |
3050 |
1 |
|||||
|
400 |
980 |
3500 |
1 |
|||||
|
500 |
1160 |
4290 |
1 |
|||||
|
630 |
1300 |
5240 |
0.85 |
6 |
||||
|
800 |
1520 |
6110 |
0.85 |
|||||
|
1000 |
1770 |
7140 |
0.85 |
|||||
|
1250 |
2090 |
8510 |
0.85 |
|||||
|
1600 |
2450 |
10290 |
0.85 |
|||||
|
2000 |
3050 |
12690 |
0.7 |
|||||
|
2500 |
3600 |
15080 |
0.7 |
|||||
|
1600 |
2450 |
11370 |
0.85 |
8 |
||||
|
2000 |
3050 |
14020 |
0.7 |
|||||
|
2500 |
3600 |
16590 |
0.7 |
|||||

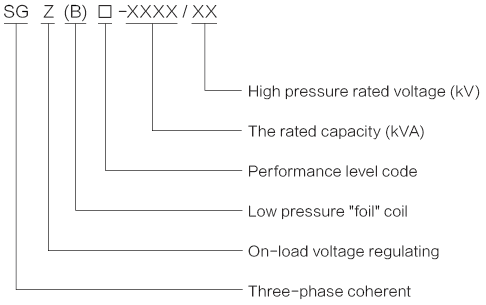

Types of meaning
SG(ZB)10 series 10kV Non – encapsulated Coil Dry – type Distribution Transformer
Note: the series of on-load voltage regulating transformer only adjust the following two data:
1, 100 kg weight increase; 2, on-load switch arrangement in the side of the transformer is a increasing positive b 650 mm or 750 mm.
